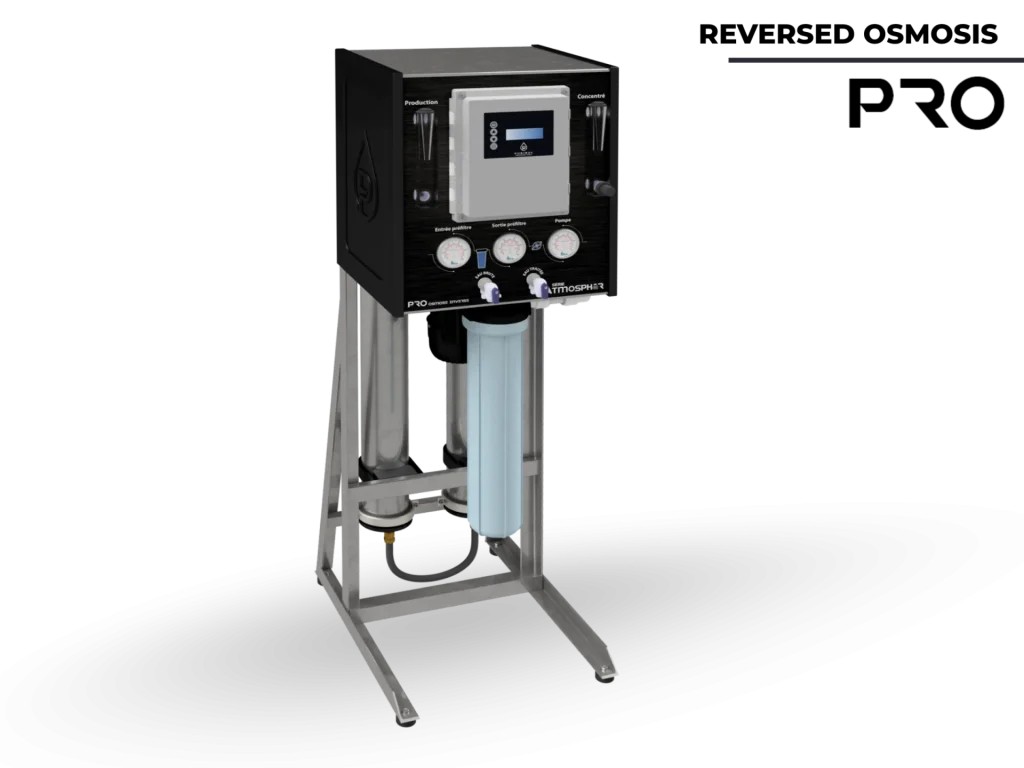

PRO Series
Engineered for professional efficiency: Master your workflow with the PRO.
- Stainless steel multistage centrifugal pump (0.75 HP)
- Corrosion-resistant stainless steel structure
- "PureRince" automatic rinse cycle
- Self-contained pressurization system (90-120 psi)
Parts
Membrane: XLE type Reverse Osmosis (4 x 40 in) with an 8.1 m2 surface area
Membrane Housing: Certified design to withstand an operating pressure of 300 psi (20.6 bar)
Configuration: Vertical-mounted housing for space optimization
Control Interface: Electronic board with operating status display, indicator lights, and alarm
Water Management: Automatic inlet solenoid valve to control water supply
Features
Reduction Capacity: Reduces approximately 95% of total dissolved solids (TDS)
Nominal Production: Up to 7560 L/day (2000 gal/d)*
Operating Pressure: 6.2 to 8.3 bar (90 to 120 psi)
PureRince Cycle: Automatic rinsing with treated water during each shutdown
Weight: 68 kg shipping weight and 77 kg (160 lb) in service
Connexions
Water Supply: 3/4" NPTF
Production (Treated Water): 3/8" quick connect
Drain (Waste): 3/8" quick connect
Rinse: 3/8" quick connect
Power Supply
Electrical: 120 VAC / 60 Hz
Amperage: Maximum total load of 12 A (11 A nominal)
Output Relays: Pump (2 HP max), inlet valve (5A max) and rinse valve (5A max)
- Stainless steel multistage centrifugal pump (1.36 HP)
- Corrosion-resistant stainless steel structure
- "PureRince" automatic rinse cycle
- Self-contained pressurization system (90-120 psi)
Parts
Membranes: Uses two XLE type osmosis membranes (4 x 40 in)
Housings: Two housings tested to withstand an operating pressure of 300 psi (20.6 bar)
Configuration: Vertical-mounted housing configuration
Interface : Electronic board signaling statuses and faults via audible alarm and indicator lights
Interface: Inlet solenoid valve to manage automatic supply
Features
Filtration: Reduces approximately 95% of total dissolved solids (TDS)
Production: Flow rate of 10.52 lpm (2.78 gpm), or 15,150 L/day (4000 gal/d)*
Operating Pressure: 90 to 120 psi (6.2-8.3 bar)
Weight: 77 kg (170 lb) shipping and 93 kg (190 lb) in service
Dimensions (L x D x H): 467 mm x 600 mm x 1454 mm
Connexions
Supply: 3/4" NPTF
Production: 3/8" quick connect
Drain: 3/8" quick connect
Rinse: 3/8" quick connect
Power Supply
Electrical: 120 VAC / 60 Hz
Amperage: Maximum total load of 12 A (11 A nominal)
Relays: Pump (120/240 VAC, 2 HP max), inlet valve (5A max) and rinse valve (5A max)
PRO Series · Reverse Osmosis
Pure water. Every day.
The PRO Series is the reverse osmosis solution designed for businesses, hotels, schools, and multi-residential buildings — superior quality water for your everyday needs. Designed, manufactured, and installed by Puribec with over 45 years of water treatment expertise.
Problems solved
- Dissolved solids (TDS)
- Minerals
- Arsenic
- Heavy metals
- Uranium
- Organic matter
- Physicochemical pollutants
Ideal for these sectors
A project?
Your production deserves better than standard filtration that eats into your margins. Let’s discuss how we can exceed your purity goals while lowering your operating costs.
