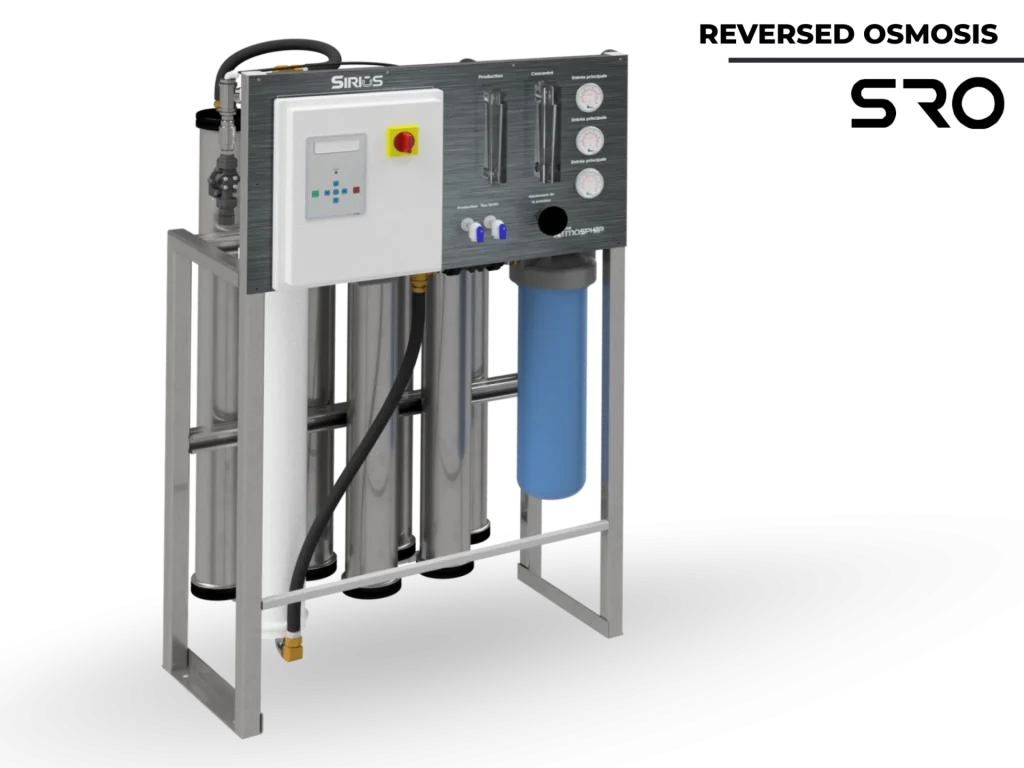

Sirius Series (SRO)
Enhanced industrial versatility: Elevate your production standards with the Sirius.
- Stainless steel multistage vertical submersible pump (1 HP NEMA motor)
- Corrosion-resistant stainless steel structure
- "PureRince" automatic rinse cycle
- Self-contained pressurization system (90-130 psi)
Parts
Membrane: One XLE Reverse Osmosis membrane (4 x 40") providing an 8.1 m² surface area
Membrane Housing: Stainless steel, rated for an operating pressure of 225 psi
Prefilter: 5 microns (4.5" x 20")
Control Interface: Controller with printed circuit board, 2-line display, audible alarm and indicator light
Instrumentation: Reject and production flow meters, and conductivity probes
Features
Reduction Capacity: At least 95% depending on raw water composition
Nominal Production: Flow rate of 5.3 lpm (1.39 gpm), or 7,570 L/day (2,000 gal/d)*
Operating Weight: 145 kg (320 lbs)
Dimensions (L x D x H): 838 mm x 457 mm x 1 372 mm (33" x 18" x 54")
Connexions
Inlet: 1" FNPT
Production: 1/2" MNPT
Drain: 3/4" MNPT
PureRince Flush: 1/2" FNPT
Power Supply
Electrical: 208-240VAC / 1ph / 60Hz (12-10.4 Amp)
Three-phase Options: 208-575VAC / 3ph / 60Hz
Protection: Fused disconnect switch
- 316 stainless steel vertical multistage submersible pump (1 HP NEMA motor)
- Corrosion-resistant stainless steel structure
- "PureRince" automatic rinse cycle
- Self-contained pressurization system (90-130 psi)
Parts
Membranes: Two XLE Reverse Osmosis membranes (4 x 40") providing a total surface area of 16.2 m²
Housings: Stainless steel, tested for an operating pressure of 225 psi
Prefilter: 5 microns (4,5" x 20")
Interface: Controller with printed circuit board and 2-line display, including audible alarm and indicator light
Instrumentation: Reject and production flow meters, with inlet and production quality control (TDS)
Features
Filtration: TDS reduction of at least 95%
Production: 10.5 lpm (2.78 gpm), or 15,140 L/day (4,000 gal/d)*
Operating Weight: 163 kg (360 lbs)
Dimensions (L x D x H): 838 mm x 457 mm x 1 372 mm (33" x 18" x 54")
Connexions
Supply: 1" FNPT
Production: 1/2" MNPT
Drain: 3/4" MNPT
Rinse: 1/2" FNPT
Power Supply
Standard: 208-240VAC / 1ph / 60Hz (12-10.4 Amp)
Three-phase Options: 208-575VAC / 3ph / 60Hz
Safety: Fused disconnect switch and low-pressure protection by pressure switch
- 316 stainless steel vertical multistage submersible pump (1 HP NEMA motor)
- Corrosion-resistant stainless steel structure
- "PureRince" automatic rinse cycle
- Self-contained pressurization system (90-130 psi)
Parts
Membranes: Three XLE Reverse Osmosis membranes (4 x 40") providing a total surface area of 24.3 m²
Housings: Stainless steel, tested for an operating pressure of 225 psi
Prefilter: 5 microns (4,5" x 20")
Interface: Controller with printed circuit board and 2-line display, including audible alarm and indicator light
Instrumentation: Reject and production flow meters, with inlet and production quality control (TDS)
Features
Filtration: TDS reduction of at least 95%
Production: 15.8 lpm (4.17 gpm), or 22,710 L/day (6,000 gal/d)*
Operating Weight: 181 kg (400 lbs
Dimensions (L x D x H): 838 mm x 457 mm x 1 372 mm (33" x 18" x 54")
Connexions
Supply: 1" FNPT
Production: 3/4" MNPT
Drain: 3/4" MNPT
Rinse: 1/2" FNPT
Power Supply
Standard: 208-240VAC / 1ph / 60Hz (12-10.4 Amp)
Three-phase Options: 208-575VAC / 3ph / 60Hz
Safety: Fused disconnect switch and low-pressure protection by pressure switch
- 316 stainless steel vertical multistage submersible pump (1 HP NEMA motor)
- Corrosion-resistant stainless steel structure
- "PureRince" automatic rinse cycle
- Self-contained pressurization system (90-130 psi)
Parts
Membranes: Four XLE Reverse Osmosis membranes (4 x 40") providing a total surface area of 32.4 m²
Housings: Stainless steel, tested for an operating pressure of 225 psi
Prefilter: 5 microns (4,5" x 20")
Interface: Controller with printed circuit board and 2-line display, including audible alarm and indicator light
Instrumentation: Reject and production flow meters, with inlet and production quality control (TDS)
Features
Filtration: TDS reduction of at least 95%
Production: 21.0 lpm (5.55 gpm), or 30,285 L/day (8,000 gal/d)*
Operating Weight: 200 kg (440 lbs)
Dimensions (L x D x H): 838 mm x 457 mm x 1 372 mm (33" x 18" x 54")
Connexions
Supply: 1" FNPT
Production: 3/4" MNPT
Drain: 3/4" MNPT
Rinse: 1/2" FNPT
Power Supply
Standard: 208-240VAC / 1ph / 60Hz (12-10.4 Amp)
Three-phase Options: 208-575VAC / 3ph / 60Hz
Safety: Fused disconnect switch and low-pressure protection by pressure switch
- 316 stainless steel vertical multistage submersible pump (1 HP NEMA motor)
- Corrosion-resistant stainless steel structure
- "PureRince" automatic rinse cycle
- Self-contained pressurization system (90-130 psi)
Parts
Membranes: Five XLE Reverse Osmosis membranes (4 x 40") providing a total surface area of 40.5 m²
Housings: Stainless steel, tested for an operating pressure of 225 psi
Prefilter: 5 microns (4,5" x 20")
Interface: Controller with printed circuit board and 2-line display, including audible alarm and indicator light
Instrumentation: Reject and production flow meters, with inlet and production quality control (TDS)
Features
Filtration: TDS reduction of at least 95%
Production: 26.3 lpm (6.94 gpm), or 37,855 L/day (10,000 gal/d)*
Operating Weight: 218 kg (480 lbs)
Dimensions (L x D x H): 838 mm x 457 mm x 1 372 mm (33" x 18" x 54")
Connexions
Supply: 1" FNPT
Production: 3/4" MNPT
Drain: 3/4" MNPT
Rinse: 1/2" FNPT
Power Supply
Standard: 208-240VAC / 1ph / 60Hz (15.1-13.1 Amp)
Three-phase Options: 208-575VAC / 3ph / 60Hz
Safety: Fused disconnect switch and low-pressure protection by pressure switch
- 316 stainless steel vertical multistage submersible pump (1 HP NEMA motor)
- Corrosion-resistant stainless steel structure
- "PureRince" automatic rinse cycle
- Self-contained pressurization system (90-130 psi)
Parts
Membranes: Six XLE Reverse Osmosis membranes (4 x 40") providing a total surface area of 48.6 m²
Housings: Stainless steel, tested for an operating pressure of 225 psi
Prefilter: 5 microns (4,5" x 20")
Interface: Controller with printed circuit board and 2-line display, including audible alarm and indicator light
Instrumentation: Reject and production flow meters, with inlet and production quality control (TDS)
Features
Filtration: TDS reduction of at least 95%
Production: 31.5 lpm (8.33 gpm), or 45,425 L/day (12,000 gal/d)*
Operating Weight: 236 kg (520 lbs
Dimensions (L x D x H): 838 mm x 457 mm x 1 372 mm (33" x 18" x 54")
Connexions
Supply: 1" FNPT
Production: 3/4" MNPT
Drain: 3/4" MNPT
Rinse: 1/2" FNPT
Power Supply
Standard: 208-240VAC / 1ph / 60Hz (15.1-13.1 Amp)
Three-phase Options: 208-575VAC / 3ph / 60Hz
Safety: Fused disconnect switch and low-pressure protection by pressure switch
Sirius · Reverse Osmosis
Pure water. At your scale.
Sirius is the reverse osmosis solution designed for businesses, hotels, schools, and multi-residential buildings — Altum’s performance, sized for your actual volumes. Designed, manufactured, and installed by Puribec with over 45 years of water treatment expertise.
Problems solved
- Dissolved solids (TDS)
- Minerals
- Arsenic
- Heavy metals
- Uranium
- Organic matter
- Physicochemical pollutants
Ideal for these sectors
A project?
Your production deserves better than standard filtration that eats into your margins. Let’s discuss how we can exceed your purity goals while lowering your operating costs.
