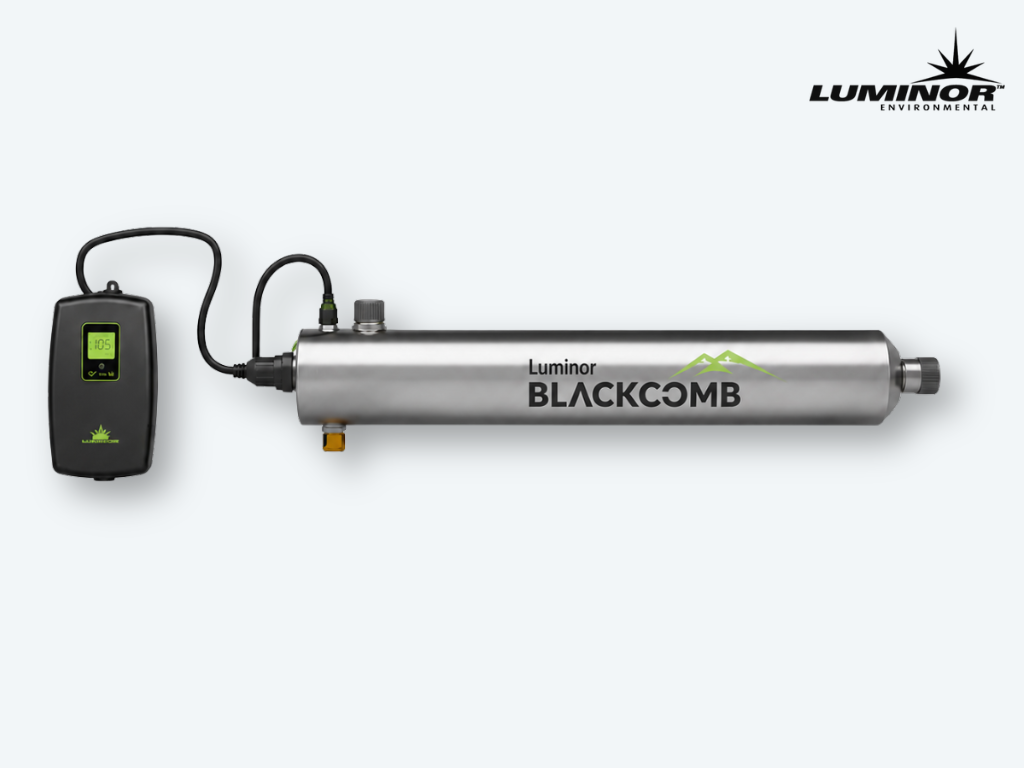

Luminor™ Blackcomb-HO Series
- Rugged Multifunction Controller: Waterproof, splash-resistant housing with a digital LED display for quick diagnostics
- High-Intensity Technology (LP-HO): High-efficiency encapsulated lamps with ceramic bases to double the power output in a compact housing
- Lamp Monitoring: Automatic tracking of remaining lifespan with visual and audible alarms in the event of a failure
- Certified industrial chamber: Polished and passivated 316L stainless steel axial reactor, manufactured in accordance with ASME pressure standards
Parts
Chambre de traitement : Polished and passivated 316L stainless steel, A249- and ASME-certified pressure-resistant tubes
UV lamp: High-efficiency, low-pressure (LP-HO) ceramic-based technology for increased durability
Control unit: Electronic constant-current controller with a 4-digit LED display
Verification: Visual indicator that allows you to safely verify that the lamp is functioning properly
Features
Flow rate range: Processes 5 GPM (18.9 lpm) to 40 GPM (151 lpm) at a dose of 30 mJ/cm² (95% UVT)
Higher dose: From 3 GPM (11.4 lpm) to 31 GPM (117 lpm) at a dose of 40 mJ/cm²
Operating pressure: Withstands an operating pressure of 0.7 to 10.3 bar (10–150 psi)
Alarm Management: Bulb replacement reminder and visual and audible fault indicators
Connexions
Pipe fittings: Threaded ports: 1/2 in. MNPT (051), 3/4 in. MNPT (101), 1 in. MNPT (151/251), up to 1 1/2 in. MNPT (401)
Mechanical seal: Lock nut with a gland seal and a positive stop to prevent over-tightening
Power Supply
Voltage: Universal Electronic Ballast 90–265 V / 50–60 Hz
Power consumption: Low power consumption ranging from 20 W to a maximum of 115 W, depending on the model
Available fact sheets: International plugs: NEMA 5/15 (110 V), CEE 7/7, BS 1363, or AS/NZ 3112
- Color-screen controller: Graphical interface displaying comprehensive diagnostics, warnings, and QR codes for support
- LightLock Technology: A safety lock that ensures the use of genuine bulbs to protect performance
- Expandable expansion port: Allows for the quick addition of external modules such as a solenoid valve, a remote alarm, or a 4–20 mA signal
- 316L Industrial Chamber: Polished stainless steel axial reactor certified to ASME pressure standards
Parts
Chambre de traitement Polished and passivated 316L stainless steel, A249- and ASME-certified pressure-resistant tubes
UV Lamp Proprietary high-efficiency low-pressure (LP-HO) technology with a durable ceramic base
Smart Controller Constant-current electronic ballast with a color display in a splash-proof enclosure
Part Protection LightLock technology prevents the use of non-approved consumables
Features
Flow Rate Range Processes 5 GPM (18.9 lpm) to 40 GPM (151 lpm) at a dose of 30 mJ/cm² (95% UVT)
Higher dose From 3 GPM (11.4 lpm) to 31 GPM (117 lpm) at a dose of 40 mJ/cm²
Operating pressure Withstands an operating pressure of 0.7 to 10.3 bar (10–150 psi)
Integrated Diagnostics Tracking the lamp's countdown timer with an audible and visual alarm in case of a problem
Connexions
Pipe Fittings Threaded ports: 1/2 in. MNPT (051), 3/4 in. MNPT (101), 1 in. MNPT (151/251), and 1 1/2 in. MNPT (401)
Scalable interface Dedicated expansion port for connecting external modules
Power Supply
Voltage Universal Electronic Ballast 90–265 V / 50–60 Hz
Power Consumption From 20 W to a maximum of 115 W, depending on the size of the system
International Plugs NEMA 5/15 (110 V), CEE 7/7, BS 1363, or AS/NZ 3112 plugs available
- Standard 254 nm UV sensor: Adjustable Teflon sensor that continuously measures actual UV intensity
- Color diagnostic display: Shows UV intensity as a percentage, system status, alarms, and support QR codes
- LightLock Locking Mechanism: Ensures the use of genuine lamps to maintain treatment effectiveness and compliance
- Integrated Automation: Expansion port ready for solenoid valve, remote alarm, and 4-20 mA signal transmission
Parts
Chambre de traitement Polished and passivated 316L stainless steel, A249- and ASME-certified pressure-resistant tubes
UV Lamp Proprietary high-efficiency low-pressure (LP-HO) technology with a durable ceramic base
Smart Controller Constant-current electronic ballast with a color display in a waterproof enclosure
UV Sensor 254-nm Teflon-based sensor mounted directly on the reactor (included as standard)
Features
Flow Rate Range Processes 5 GPM (18.9 lpm) to 40 GPM (151 lpm) at a dose of 30 mJ/cm² (95% UVT)
Higher dose From 3 GPM (11.4 lpm) to 31 GPM (117 lpm) at a dose of 40 mJ/cm²
Operating pressure Withstands an operating pressure of 0.7 to 10.3 bar (10–150 psi)
Intensity Display Percentage reading of the standard UV intensity displayed directly on the controller
Connexions
Pipe Fittings Threaded ports: 1/2 in. MNPT (051), 3/4 in. MNPT (101), 1 in. MNPT (151/251), and 1 1/2 in. MNPT (401)
Extension Interface Plug-and-play port for quick connection of automation modules
Power Supply
Voltage Universal Electronic Ballast 90–265 V / 50–60 Hz
Power Consumption From 20 W to a maximum of 115 W, depending on the size of the system
International Outlets NEMA 5/15 (110 V), CEE 7/7, BS 1363, or AS/NZ 3112 plugs available
