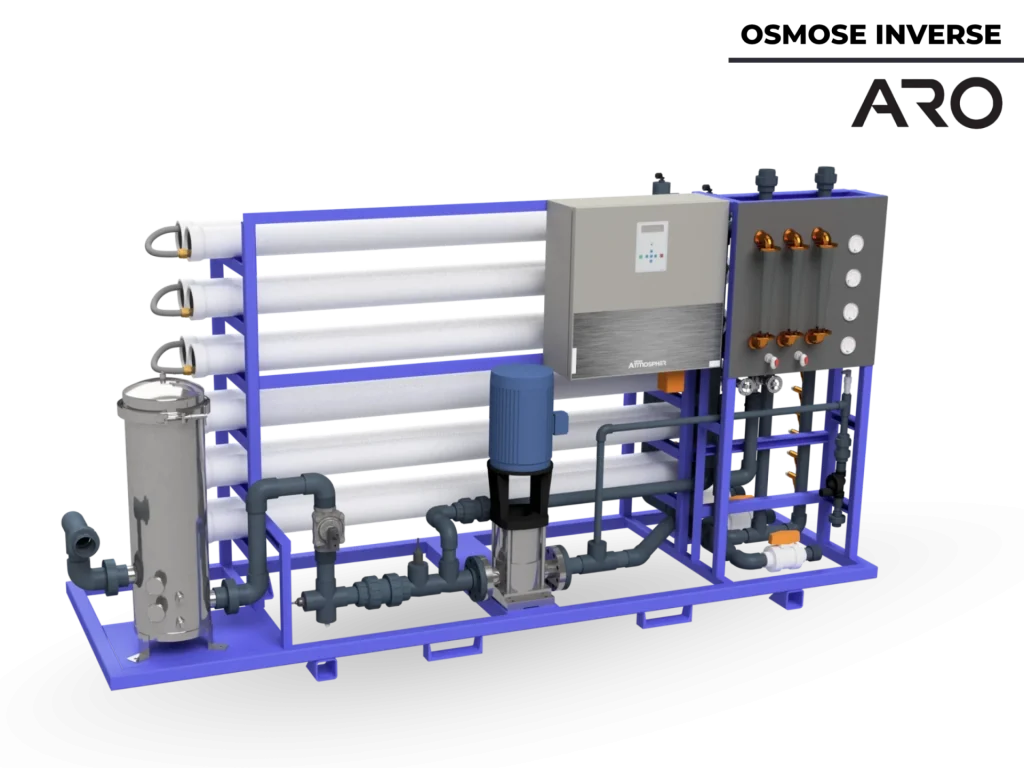

Altum Series (ARO)
Uncompromising Industrial Performance: Master your water needs with the Altum.
- Multi-stage centrifugal pump (304 stainless steel wet end)
- PureRince automatic flush system with treated water upon shutdown
- Epoxy-coated steel frame (stainless steel available upon request)
- Autonomous pressurization device (operating pressure of 100 to 150 psi)
Parts
Membranes: 8 low energy TFC membranes (4 x 40") offering a total area of 64.8 m²
Membrane Housing: 4 fiberglass housings, each containing 2 membranes, rated for 250 psi
Prefilter: 1-micron cartridge filter
Control Interface: Controller with integrated circuit and 2-line display, including pressure and water quality alarms
Instrumentation: Recirculation, reject, and product flow meters
Features
Performance: At least 95% depending on raw water composition
Nominal Production: 37.8 lpm (10 gpm), or 54,500 L/day (14,400 gal/day) at 25 °C
Operating Weight: 434 kg (957 lbs)
Dimensions: 2,946 mm (Width) x 914 mm (Depth) x 1,626 mm (Height)
Connexions
Inlet: 2" PVC Union
Product Outlet: 1.5" PVC Union
Drain: 1.5" PVC Union
PureRince Flush: 3/4" PVC Union
Power Supply
Electrical: 240 VAC / 1 ph / 60 Hz (5 HP motor)
Voltage Options: 208-575 VAC / 3 ph / 60 Hz or 380 VAC / 1 ph / 50 Hz
Protection: NEMA 4X enclosure and main disconnect included
- Multi-stage centrifugal pump with 304 stainless steel wet end
- PureRince automatic flush system with treated water upon shutdown
- Epoxy-coated steel frame (stainless steel available upon request)
- Autonomous pressurization device for an operating pressure of 100 to 150 psi
Parts
Membranes: 12 low energy TFC membranes (4 x 40") offering a total area of 97.2 m²
Housings: 6 fiberglass housings, each containing 2 membranes, rated for 250 psi
Prefilter: 1-micron cartridge filter
Interface: Controller with printed circuit board and 2-line display, including pressure and water quality alarms
Instrumentation: Recirculation, reject, and product flow meters
Features
Performance: Reduction of dissolved solids by at least 95% depending on raw water composition
Nominal Production: 56.8 lpm (15.0 gpm), or 81,750 L/day (21,600 gal/day) at 25 °C
Performance at 5 °C: 38.6 lpm (for 1,000 mg/L TDS)
Weight: 506 kg (1,116 lbs)
Dimensions: 2,946 mm (Width) x 914 mm (Depth) x 1,626 mm (Height)
Connexions
Inlet: 2" PVC Union
Product Outlet: 1.5" PVC Union
Reject Outlet: 1.5" PVC Union
PureRince Flush: 3/4" PVC Union
Power Supply
Standard Electrical: 240 VAC / 1 ph / 60 Hz (5 HP motor)
Voltage Options: 208-575 VAC / 3 ph / 60 Hz or 380 VAC / 1 ph / 50 Hz
Protection: NEMA 4X enclosure and main disconnect included
- Multi-stage centrifugal pump with 304 stainless steel wet end
- PureRince automatic flush system with treated water upon shutdown
- Epoxy-coated steel frame (stainless steel available upon request)
- Autonomous pressurization device for an operating pressure of 100 to 150 psi
Parts
Membranes: 16 low energy TFC membranes (4 x 40") offering a total area of 129.6 m²
Housings: 8 fiberglass housings, each containing two membranes, rated for 250 psi
Prefilter: 1-micron cartridge filter
Interface: Controller with printed circuit board and 2-line display continuously showing water quality data
Instrumentation: Recirculation, reject, and product flow meters with pressure and quality alarms
Features
Performance: Reduction of dissolved solids by at least 95% depending on raw water composition
Nominal Production: 75.7 lpm (20 gpm), or 109,000 L/day (28,800 gal/day) at 25 °C
Performance at 5 °C: 51.5 lpm (for 1,000 mg/L TDS)
Weight: 624 kg (1,376 lbs)
Dimensions: 2,946 mm (Width) x 914 mm (Depth) x 1,626 mm (Height)
Connexions
Inlet: 2" PVC Union
Product Outlet: 1.5" PVC Union
Reject Outlet: 1.5" PVC Union
PureRince Flush: 3/4" PVC Union
Power Supply
Standard Electrical: 240 VAC / 1 ph / 60 Hz (7.5 HP motor)
Voltage Options: 208-575 VAC / 3 ph / 60 Hz or 380 VAC / 1 ph / 50 Hz
Protection: NEMA 4X enclosure and main disconnect included
- Multi-stage centrifugal pump with 304 stainless steel wet end
- PureRince automatic flush system with treated water upon shutdown
- Epoxy-coated steel frame (stainless steel available upon request)
- Autonomous pressurization device for an operating pressure of 100 to 150 psi
Parts
Membranes: 20 low energy TFC membranes (4 x 40") offering a total area of 162 m²
Housings: 10 fiberglass housings, each containing two membranes, rated for 250 psi
Prefilter: 1-micron cartridge filter
Interface: Controller with printed circuit board and 2-line display continuously showing water quality data
Instrumentation: Recirculation, reject, and product flow meters with pressure and quality alarms
Features
Performance: Reduction of dissolved solids by at least 95% depending on raw water composition
Nominal Production: 94.6 lpm (25 gpm), or 136,250 L/day (36,000 gal/day) at 25 °C
Performance at 5 °C: 64.7 lpm (for 1,000 mg/L TDS)
Weight: 697 kg (1,537 lbs)
Dimensions 2,946 mm (Width) x 914 mm (Depth) x 1,626 mm (Height)
Connexions
Inlet: 2" PVC Union
Product Outlet: 1.5" PVC Union
Reject Outlet: 1.5" PVC Union
PureRince Flush: 3/4" PVC Union
Power Supply
Standard Electrical: 240 VAC / 1 ph / 60 Hz (7.5 HP motor)
Voltage Options: 208-575 VAC / 3 ph / 60 Hz or 380 VAC / 1 ph / 50 Hz
Protection: NEMA 4X enclosure and main disconnect included
- Multi-stage centrifugal pump with 304 stainless steel wet end
- PureRince automatic flush system with treated water upon shutdown
- Epoxy-coated steel frame (stainless steel available upon request)
- Autonomous pressurization device for an operating pressure of 100 to 150 psi
Parts
Membranes: 24 low energy TFC membranes (4 x 40") offering a total area of 194.4 m²
Housings: 12 fiberglass housings, each containing two membranes, rated for 250 psi
Prefilter: 1-micron cartridge filter
Interface: Controller with printed circuit board and 2-line display continuously showing water quality data
Instrumentation: Recirculation, reject, and product flow meters with pressure and quality alarms
Features
Performance: Reduction of dissolved solids by at least 95% depending on raw water composition
Nominal Production: 113.6 lpm (30 gpm), or 163,500 L/day (43,200 gal/day) at 25 °C
Performance at 5 °C: 78.0 lpm (for 1,000 mg/L TDS)
Weight: 813 kg (1,792 lbs)
Dimensions: 2,946 mm (Width) x 914 mm (Depth) x 1,626 mm (Height)
Connexions
Inlet: 2" PVC Union
Product Outlet: 1.5" PVC Union
Reject Outlet: 1.5" PVC Union
PureRince Flush: 3/4" PVC Union
Power Supply
Standard Electrical: 240 VAC / 1 ph / 60 Hz (10 HP motor)
Voltage Options: 208-575 VAC / 3 ph / 60 Hz or 380 VAC / 1 ph / 50 Hz
Protection: NEMA 4X enclosure and main disconnect included
Altum · Reverse Osmosis
Pure water. No compromises. Through the membrane.
The Altum Series is the industry-leading reverse osmosis solution — certified, distributed, and installed by Puribec with over 45 years of water treatment expertise.
Problems solved
- Dissolved solids (TDS)
- Minerals
- Arsenic
- Heavy metals
- Uranium
- Organic matter
- Physicochemical pollutants
Industries where osmosis is essential
A project?
Your production deserves better than standard filtration that eats into your margins. Let’s discuss how we can exceed your purity goals while lowering your operating costs.
