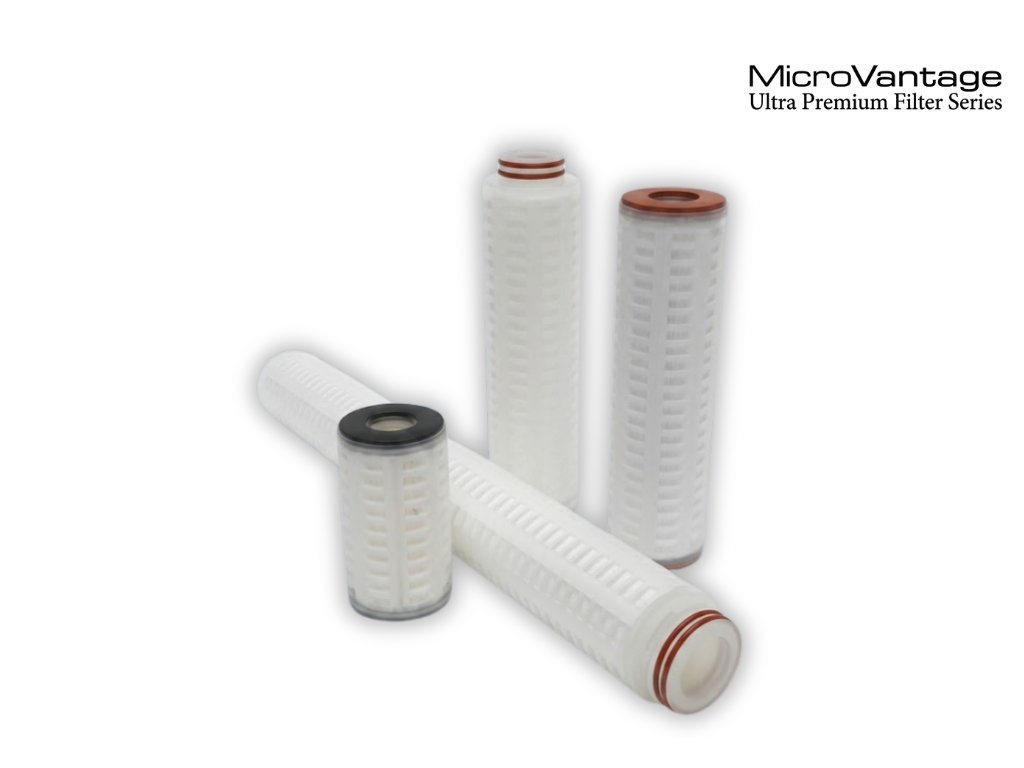

Microvantage™ High efficiency cartridges
High purity consumable offering industrial and sanitary precision filtration.
Download the PDF technical sheet
- Pleated polypropylene filter cartridges with extended service life and absolute efficiency—99.98% efficiency
- Absolute retention rate for Beta 5000: 99.98% for particles ranging from 0.2 to 50 microns
- 7.0 square feet of filter area designed for maximum flow rate and particle retention with the lowest pressure drop
- Made of 100% polypropylene, offering a wide range of chemical compatibility
- A rigid molded cage that protects the pleated media and enhances structural stability
- Manufactured in a Class 10,000 cleanroom for maximum purity
- Complies with applicable CFR criteria and USP Class VI biological testing requirements for plastics
Download the PDF technical sheet
- Absolute-efficiency pleated polypropylene filter cartridges – 99.98% efficiency
- Absolute retention rate for Beta 5000: 99.98% for particles ranging from 0.2 to 50 microns
- 5.6 square feet of filter surface area designed for optimal flow rate and particle retention at a competitive price
- Made of 100% polypropylene, offering a wide range of chemical compatibility
- Manufactured in a Class 10,000 cleanroom for maximum purity
- Complies with applicable CFR criteria and USP Class VI biological testing requirements for plastics
Download the PDF technical sheet
- High-efficiency pleated polypropylene filter cartridges – 90% efficiency
- 90% retention efficiency for particles ranging from 0.2 to 50 microns
- 5.6 square feet (0.52 m²) of filter surface area for a long service life and high contaminant-holding capacity
- Made of 100% polypropylene, offering a wide range of chemical compatibility
- A rigid molded cage that protects the pleated media and enhances structural stability
- Manufactured in a cleanroom environment for maximum purity
- Complies with applicable CFR criteria and USP Class VI biological testing requirements for plastics
Download the PDF technical sheet
- Pleated fiberglass filter cartridges
- Micron retention thresholds ranging from 0.2 to 30 microns
- Borosilicate glass microfiber media with a polypropylene structure, offering a wide range of chemical compatibility
- Large filter area designed for optimal flow and exceptional particle retention
- A rigid, molded polypropylene cage that protects the pleated media and enhances structural stability
Download the PDF technical sheet
- Extruded-blown (melt-blown) depth filter cartridges with absolute and high-efficiency filtration
- PDA Series: 99.9% retention rate for particles ranging from 0.5 to 70 microns
- PDH Series: 90% retention rate from 0.5 to 75 microns
- 100% polypropylene blown-extruded microfibers thermally bonded into a multilayer, graded-density pore structure for maximum dirt-holding capacity in each filter
- A fixed-pore structure molded around a rigid central core, providing greater stability under higher differential pressures and high-temperature conditions
- FDA-approved construction materials that meet USP Class IV criteria
- The PDA series filters are industrial filters that are traceable by batch and come with a certificate of conformity.
- Ideal for food and pharmaceutical applications
Download the PDF technical sheet
- High-performance pleated polypropylene filter cartridges with absolute efficiency (99.98%)
- Beta 5000 Absolute Retention Efficiency (99.98%)
- Rigid molded cage providing greater structural integrity
- Manufactured in a state-of-the-art cleanroom for maximum purity
- Optional pre-rinsed cartridges are available for electronic and pharmaceutical applications
- Complies with FDA standards and CFR requirements for contact with food and beverages
- Made in 10-inch sections for maximum strength and crease protection
Download the PDF technical sheet
- Pleated fiberglass filter cartridges
- Micron retention thresholds ranging from 0.2 to 30 microns
- Borosilicate glass microfiber media with a polypropylene structure, offering a wide range of chemical compatibility
- Optimized for retention and excellent flow rates
- Highly durable components that protect the pleated media and enhance structural stability
- Complies with the FDA's CFR criteria for contact with food and beverages
Download the PDF technical sheet
- High-capacity pleated polypropylene filter cartridges
- Média plissé en polypropylène à efficacité de 98 % protégé par des composants ultra-résistants pour une meilleure stabilité structurelle
- 98% efficient pleated polypropylene filter media protected by ultra-durable components for improved structural stability
- Complies with USP Class IV biological testing for plastics, and all materials comply with FDA Title 21 for contact with food and beverages
- Thermally bonded and manufactured in standard lengths of up to 40 inches (101.6 cm), available in a variety of end configurations
- Optimized for retention and excellent flow rates
